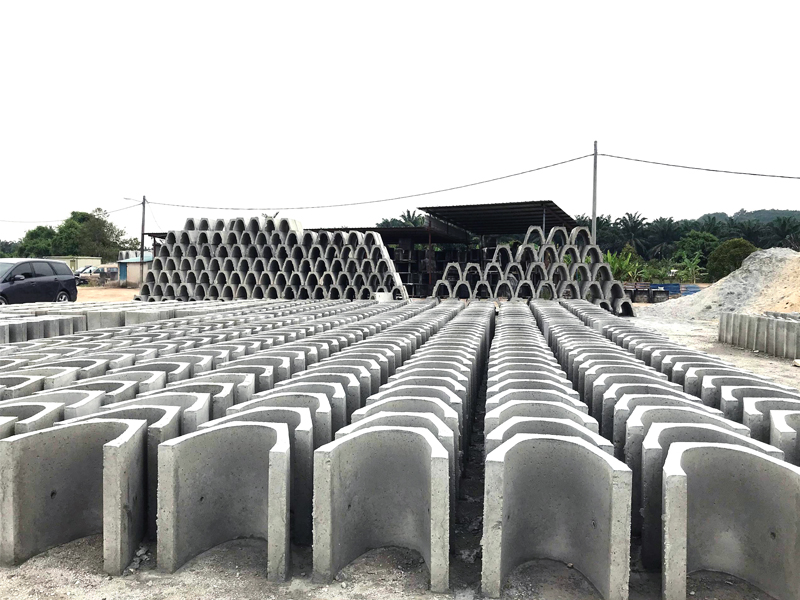

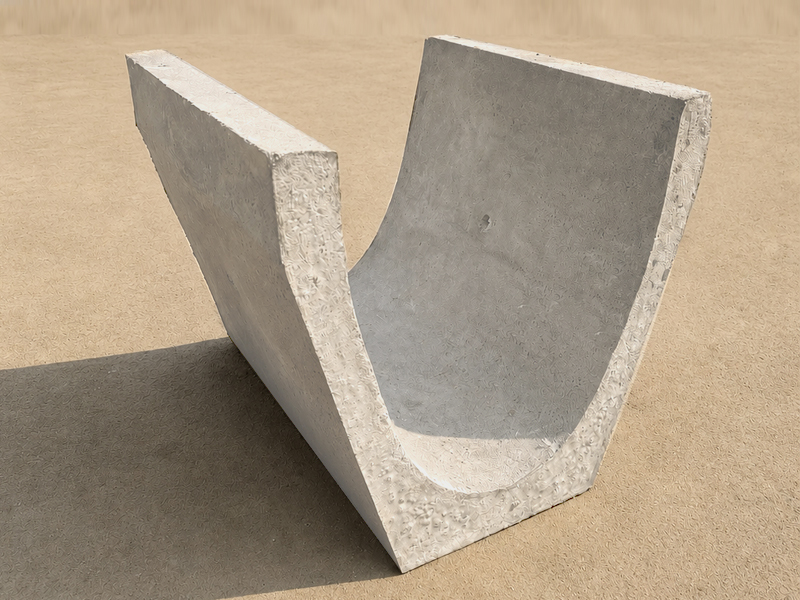

Egg Shape Block Drains
- Reinforced with BRC 65/A5
- Concrete Grade – 25N/mm2
- Specifications are subject to change with prior notice
Specifications
| Nominal Size (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|
| 300 x 300 | 300 | 300 | 75 | 100 | 75 | 200 | 600 |
| 375 x 375 | 375 | 375 | 75 | 100 | 75 | 250 | 600 |
| 450 x 450 | 450 | 450 | 75 | 100 | 75 | 280 | 600 |
| 600 x 600 | 600 | 600 | 100 | 125 | 100 | 362.5 | 600 |
| 750 x 750 | 750 | 750 | 100 | 125 | 100 | 462.5 | 600 |
| 900 x 900 | 900 | 900 | 125 | 150 | 140 | 562.5 | 600 |
