Standard Size Box Culverts – Solid Mix

Standard Size Box Culverts

Concrete Grade – 40N/mm²
Standard Length – 1m
Specifications are subject to change with prior notice

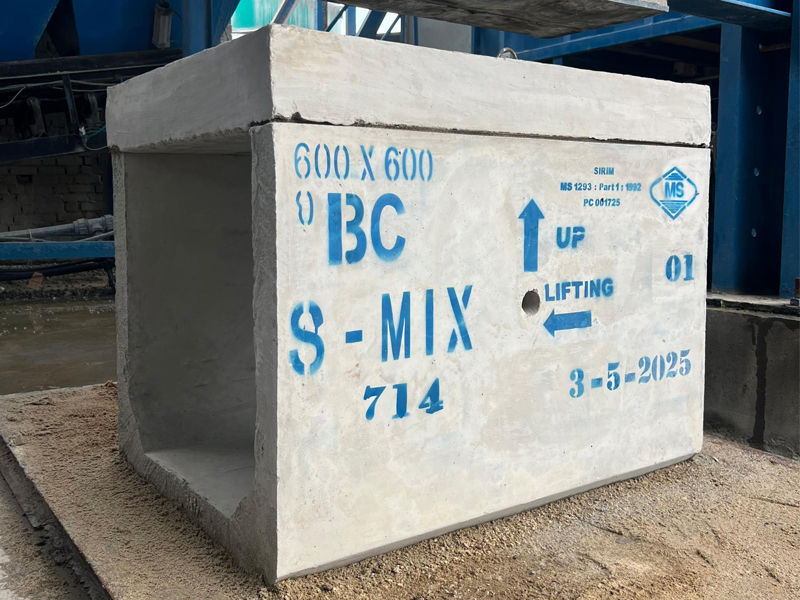

S-Mix Sirim Standard Size Box Culvert

Standard Size Box Culverts - Image 2

Standard Size Box Culverts - Image 3

Specifications

Nominal Size (mm)	Common Dimensions					Box Culverts
b x h (mm)	A (mm)	B (mm)	b (mm)	h (mm)	L (mm)	H1 (mm)
300 x 300	100	450	300	300	75	475
375 x 375	100	525	375	375	75	550
450 x 450	100	600	450	450	75	613
600 x 300	140	750	600	300	75	503
600 x 450	140	750	600	450	75	653
600 x 600	140	750	600	600	75	803
750 x 450	140	910	750	450	80	658
750 x 600	140	910	750	600	80	808
750 x 750	140	910	750	750	80	958
900 x 450	150	1080	900	450	90	678
900 x 600	150	1080	900	600	90	828
900 x 750	150	1080	900	750	90	978
900 x 900	150	1080	900	900	90	1128
1200 x 600	150	1400	1200	600	100	838
1200 x 750	150	1400	1200	750	100	988
1200 x 900	150	1400	1200	900	100	1138
1200 x 1050	150	1400	1200	1050	100	1288
1200 x 1200	150	1400	1200	1200	100	1438
1500 x 600	180	1720	1500	600	110	878
1500 x 750	180	1720	1500	750	110	1028
1500 x 900	180	1720	1500	900	110	1178
1500 x 1050	180	1720	1500	1050	110	1328
1500 x 1200	180	1720	1500	1200	110	1478
1500 x 1350	180	1720	1500	1350	110	1628
1500 x 1500	180	1720	1500	1500	110	1778
1800 x 750	185	2040	1800	750	120	1043
1800 x 900	185	2040	1800	900	120	1193
1800 x 1050	185	2040	1800	1050	120	1343
1800 x 1200	185	2040	1800	1200	120	1493
1800 x 1350	185	2040	1800	1350	120	1643
1800 x 1500	185	2040	1800	1500	120	1793
1800 x 1650	185	2040	1800	1650	120	1943
1800 x 1800	185	2040	1800	1800	120	2093
