Super Size Box Culverts

  • Concrete Grade – 40N/mm2
  • Standard Length – 1m
  • Specifications are subject to change with prior notice

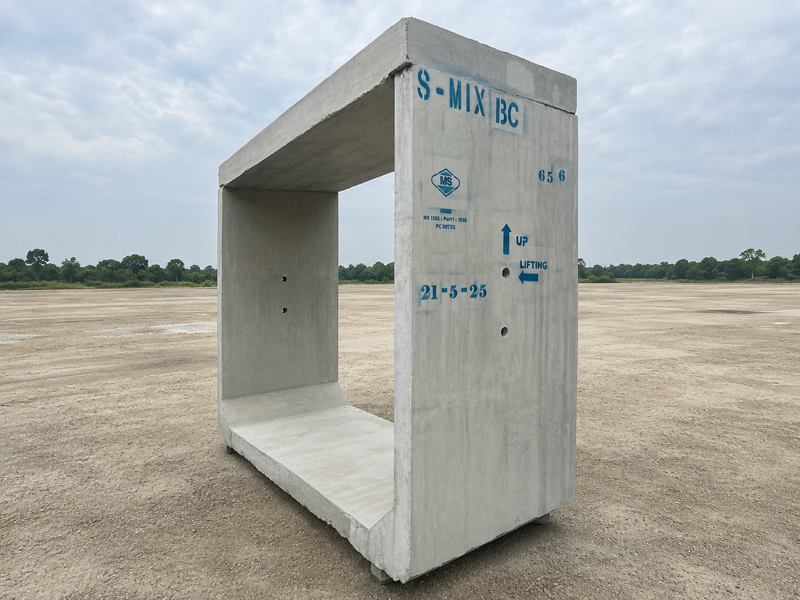

Super Size Box Culverts
Super Size Box Culverts - Image 2

Specifications

Nominal Size (mm)Common DimensionsBox Culverts
b x h
(mm)		A
(mm)		B
(mm)		b
(mm)		h
(mm)		L
(mm)		H1
(mm)
2100 x 12002522460210012001801620
2100 x 15002522460210015001801920
2100 x 18002522460210018001802220
2100 x 21002522460210021001802520
2400 x 12002522760240012001801620
2400 x 15002522760240015001801920
2400 x 18002522760240018001802220
2400 x 21002522760240021001802520
2400 x 24002522760240024001802820
2700 x 15002523060270015001801920
2700 x 18002523060270018001802220
2700 x 21002523060270021001802520
2700 x 24002523060270024001802820
2700 x 27002523060270027001803120
3000 x 15002523360300015001801920
3000 x 18002523360300018001802220
3000 x 21002523360300021001802520
3000 x 24002523360300024001802820
3000 x 27002523360300027001803120
3000 x 30002523360300030001803420
3300 x 15002523700330015002001940
3300 x 18002523700330018002002240
3300 x 21002523700330021002002540
3300 x 24002523700330024002002840
3300 x 27002523700330027002003140
3300 x 30002523700330030002003440
3600 x 18002524000360018002002240
3600 x 21002524000360021002002540
3600 x 24002524000360024002002840
3600 x 27002524000360027002003140
3600 x 30002524000360030002003440
3600 x 33002524000360033002003740
3600 x 36002524000360036002004040
